Product Portfolio

Our EV Chargers

AC chargers from 3.3 kW to 22 kW and DC fast chargers from 22 kW to 240 kW — click any product to view full technical specifications and dimensions.

AC Chargers

AC EV Chargers

Single and three-phase AC chargers with OCPP 1.6, RFID, GSM/4G, Wi-Fi, and on-board Class-1 metering. Click any charger for full specifications.

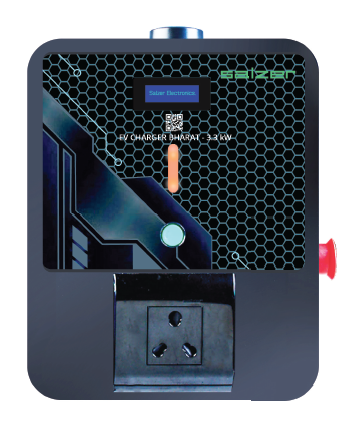

3.3 kW AC EV Charger
AC

3.3 kW AC EV Charger

Entry-level single-phase AC charger ideal for residential and light commercial use.

  • 3.3 kW
  • 16A Socket / 16A Industrial Socket
  • 280 × 192 × 101 mm
View full specs
7.4 kW AC EV Charger
AC

7.4 kW AC EV Charger

Single-phase charger with CCS Type 2 gun, RFID and GSM/4G + Wi-Fi connectivity.

  • 7.4 kW
  • CCS Type 2 Gun
  • 470 × 320 × 143 mm
View full specs

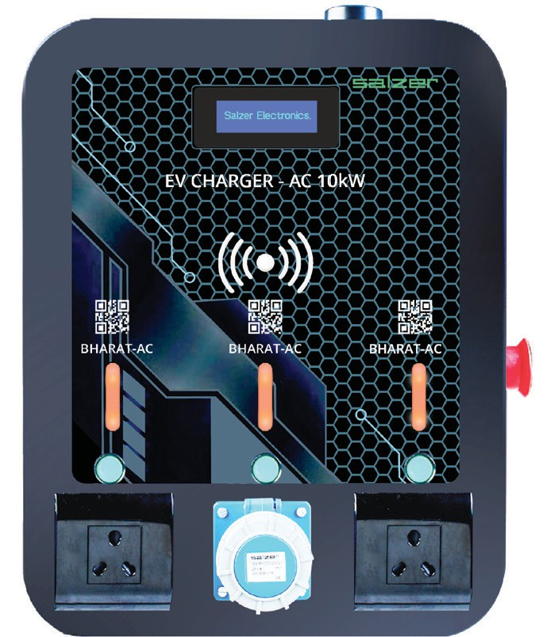

10 kW AC EV Charger
AC

10 kW AC EV Charger

Three-phase charger with three configurable connectors — ideal for multi-EV locations.

  • 10 kW
  • 3× Configurable — 16A or Industrial Socket
  • 470 × 370 × 143 mm
View full specs

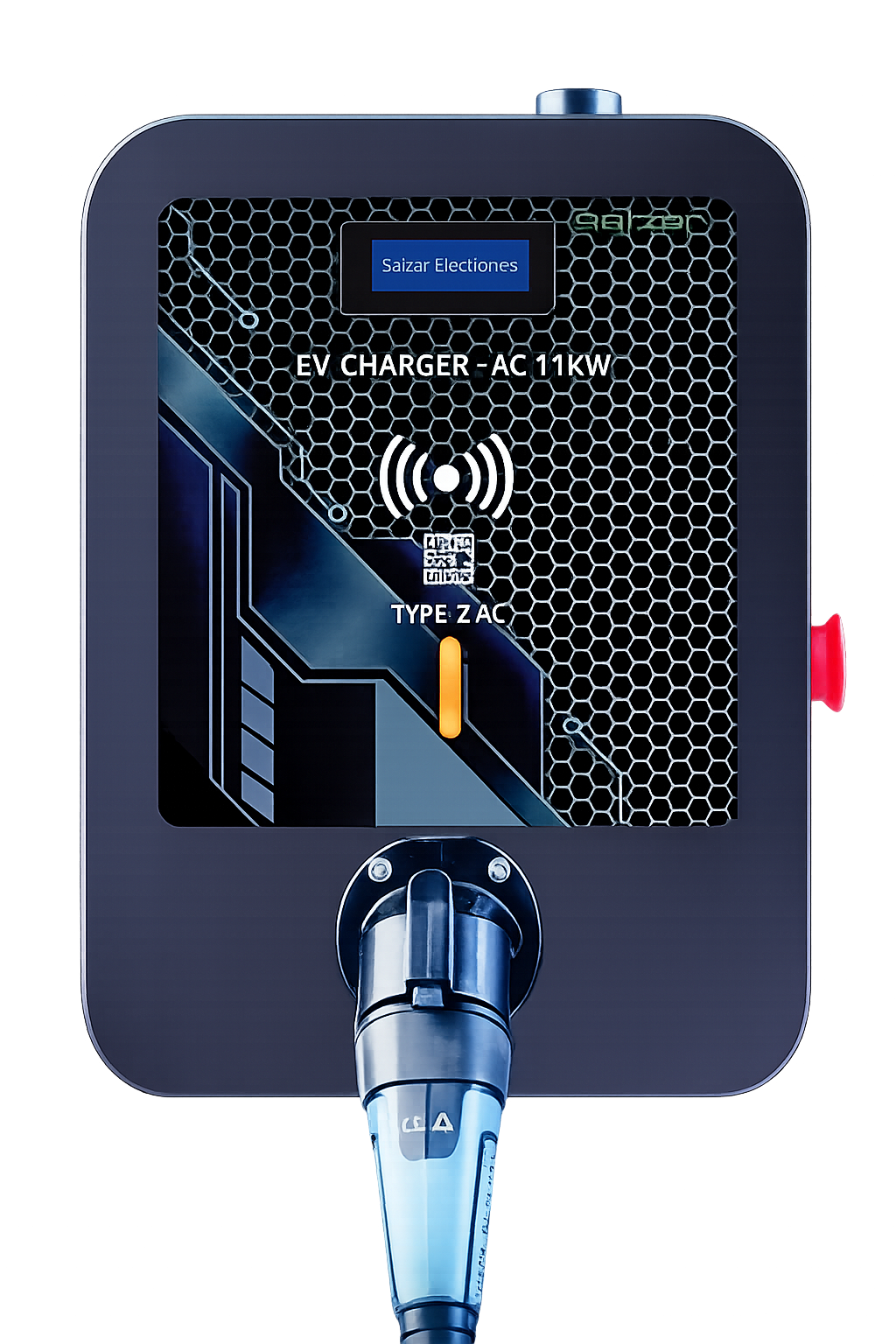

11 kW AC EV Charger
AC

11 kW AC EV Charger

Three-phase AC charger with single CCS Type 2 gun at 16A — the ideal mid-range option for commercial premises.

  • 11 kW
  • Single CCS Type 2 Gun
  • 470 × 370 × 143 mm
View full specs

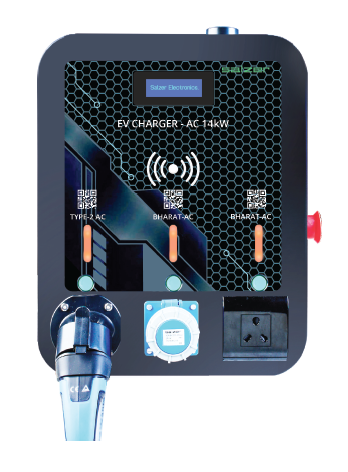

14 kW AC EV Charger
AC

14 kW AC EV Charger

Hybrid three-phase charger offering CCS Type 2, 16A industrial socket, and 16A socket in one unit.

  • 14 kW
  • Hybrid — CCS Type 2 + 16A Industrial Socket + 16A Socket
  • 470 × 370 × 143 mm
View full specs

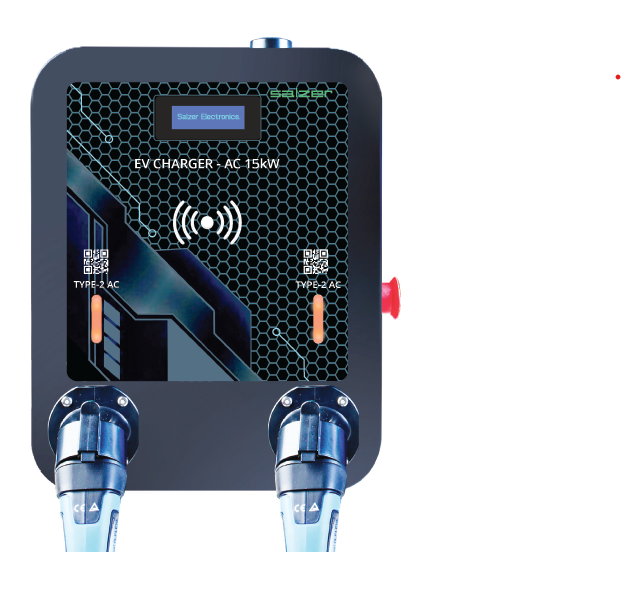

15 kW AC EV Charger
AC

15 kW AC EV Charger

Three-phase dual-gun charger enabling simultaneous charging of two EVs via CCS Type 2.

  • 15 kW
  • Dual Gun — CCS Type 2
  • 470 × 370 × 143 mm
View full specs
22 kW AC EV Charger
AC

22 kW AC EV Charger

Highest-power AC charger in the range. Three-phase single CCS Type 2 gun for commercial premises.

  • 22 kW
  • Single CCS Type 2 Gun
  • 470 × 370 × 143 mm
View full specs
DC Fast Chargers

DC Fast Chargers

22 kW to 240 kW dual-gun DC fast chargers with real-time load sharing, 96% efficiency, and ARAI certification. Click any charger for full specifications.

22 kW DC EV Charger (UFC22kW)
DC

22 kW DC EV Charger (UFC22kW)

Ultra-compact wall-mount DC fast charger with CCS2, IP55 protection, and >97% uptime rating.

  • 22 kW
  • 73 A
  • 700 × 400 × 180 mm
View full specs
60 kW DC EV Charger
DC

60 kW DC EV Charger

Dual-gun DC fast charger delivering up to 30 kW per gun with real-time load sharing.

  • 60 kW
  • CCS2: 150 – 1000 VDC
  • 1524 × 670 × 549 mm
View full specs
80 kW DC EV Charger
DC

80 kW DC EV Charger

Dual-gun charger at 40 kW per gun. Field-upgradable to 120 kW without hardware replacement.

  • 80 kW (Upgradable to 120 kW)
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
90 kW DC EV Charger
DC

90 kW DC EV Charger

Smart dual-gun charger — deliver up to 60 kW to a single EV or split load dynamically between two.

  • 90 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
120 kW DC EV Charger
DC

120 kW DC EV Charger

Dual-gun charger with dynamic 90 kW / 30 kW power split and OCPP 2.0.1 Smart Charging.

  • 120 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
180 kW DC EV Charger
DC

180 kW DC EV Charger

High-power dual-gun charger delivering 90 kW per gun with IP54 indoor/outdoor rating.

  • 180 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
240 kW DC EV Charger
DC

240 kW DC EV Charger

Ultra-fast dual-gun charger at 120 kW per gun. Ideal for highway corridors and high-traffic hubs.

  • 240 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
Specifications

AC Charger Technical Specifications

Common technical specifications across all Salzer AC EV Charger models.

Input Supply1ϕ: 230V AC | 3ϕ: 415V AC, ±10%, 50 Hz
Output Power3.3 kW / 7.4 kW / 10 kW / 14 kW / 15 kW / 22 kW
Connector TypesCCS Type 2 Gun / 16A Socket / 16A Industrial Socket
CommunicationGSM/4G + Wi-Fi; Auto Network Switching
ProtocolOCPP 1.6 JSON
Display20×4 Character LCD; Optional 4.3" TFT Colour Display
Status IndicationRGB LED
MeteringOn-board Class-1 Metering; In-built CT & Internal Metering
Access ControlInternal RFID; Solenoid Lock Support
SafetyEarth Fault Protection; 5 kVA Surge Protection; Over/Under Voltage & Current Protection; Emergency Stop
Smart FeaturesOTA Firmware Update; Charger Pre-Booking; RTC Support
Operating Temperature0°C to +70°C
Specifications

DC Charger Technical Specifications

Common technical specifications across all Salzer DC Fast Charger models.

AC Input Voltage480 / 280 VAC ±10%, 50 Hz
Input Configuration3ϕ 4-Wire (L1, L2, L3, N, PE)
Current THD< 5%
Short Circuit Rating65 kA
DC Output VoltageCCS2: 150 – 1000 VDC
Output Power22 kW / 60 kW / 80 kW / 90 kW / 120 kW / 180 kW / 240 kW
Efficiency96%
Load SharingReal-time load sharing between dual guns
Display10" High Brightness Full Colour Touchscreen (except 22 kW model)
CommunicationGSM / 3G / 4G Modem; 10/100 Base-T Ethernet; Wi-Fi
ProtocolOCPP 1.6; OCPP 2.0.1 Smart Charging Profiles; Auto Charge
RFID / AuthenticationISO/IEC 14443A/B & 15393; FeliCa; NFC; Mifare; Calypso
Operating Temperature-35°C to +55°C (de-rating applies at extremes)
Protection RatingIP54; NEMA 3R — Indoor & Outdoor rated
Compliance & SafetyEN 61851; EN 62196; DIN 70121; ISO 15118; IEC 61000-6-3; EMC Class A; FCC Part 15; C22.2 No. 107.1; NEC Article 625; ARAI Certified (22 kW pending)
Resources

Downloads & Resources

AC EV Charger Catalogue

Full AC charger product range & specs

PDF • 15 MB

DC EV Charger Catalogue

Full DC charger product range & specs

PDF • 3.2 MB

Need a custom solution?

Our team designs bespoke charging infrastructure tailored to your site and requirements.

Talk to an Expert
